1) Compact design with durable motor 1500w
2) Threading diameter and threading length can be adjusted easily
3) Nitriding heat-treatment has improved the wear-resistance of the gear box
* Heavy-duty proven performance.
* Threads ¼”-2” pipe at 38RPM
* Standard with one pc 1/2“-2” Self Opening Die Head fits RIDGID ® 815A Die Head

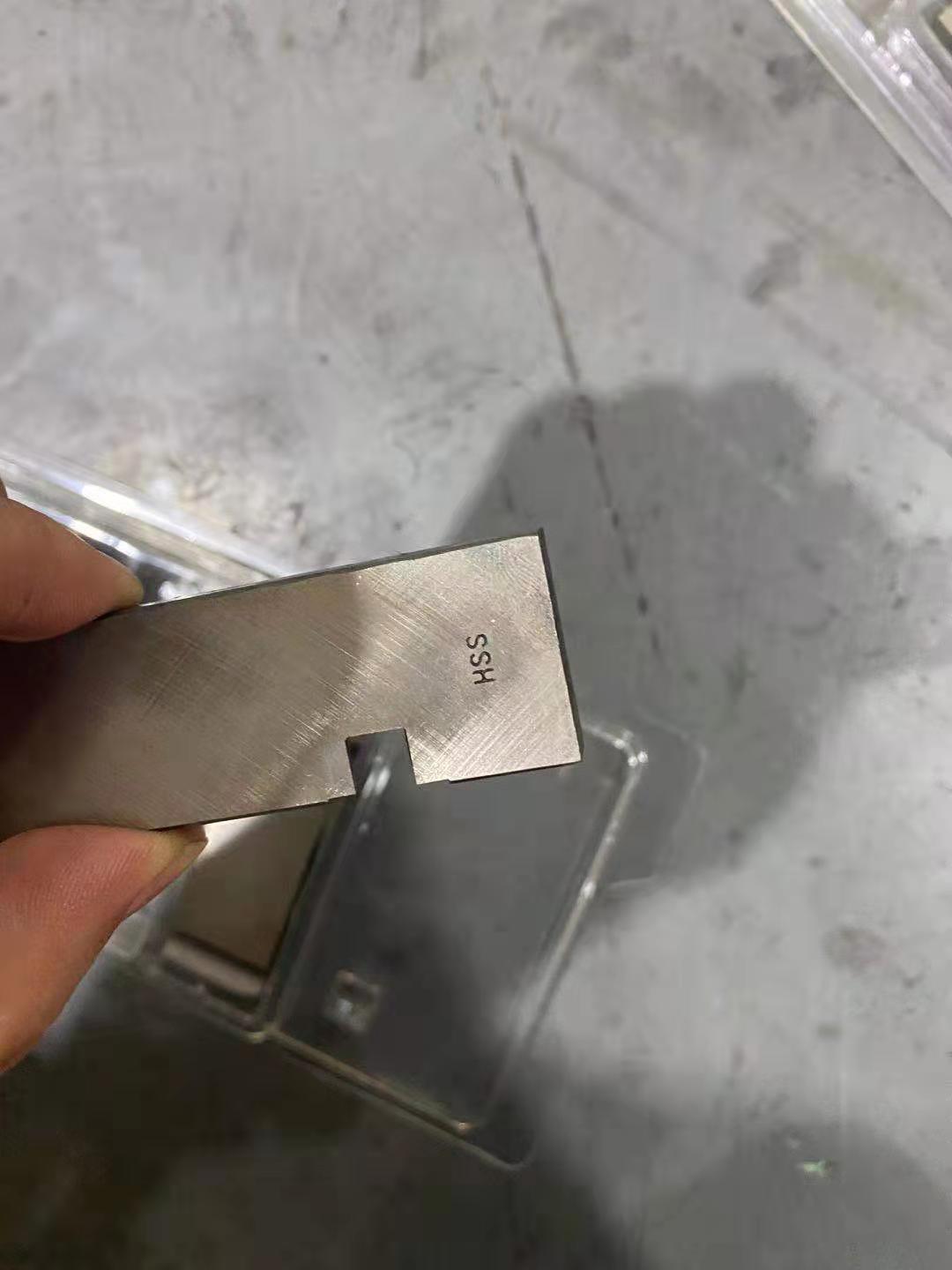

* Standard with one set 1/2"-3/4", HSS dies fits RIDGID ® Dies.
* Standard with one set 1"-2", HSS dies fits RIDGID ® Dies.
* HSS dies Rockwell Hardness (HRC) 58-62
* Each Parts on this machine are work with the RIDGID ® Model 300 Compact
* Pump: Self-priming adjustable flow, gerotor pump.
* Cutter Assembly work with RIDGID ® 360 Cutter
* Front Chuck: Hammer type with replaceable rocker action jaw inserts.
* Precision thread cutting for NPT/BSPT/Metric/BSPP/NPSM
* 651 Pneumatic Folding Wheel Stand with 2 wheels (optional), 10 inch steel wheels with Solid Rubber Tires is more durable
* Approved by CE standards.
* 1 Year Warranty
HS Code of SQ50E Electric Pipe Threading Machine: 8459700000
Other size in option
We have 1inch, 3inch, 4inch, 6inch, as well as 2inch pipe threaders.
Knowledge of pipe threading machine
An electric pipe threading machine is a power tool used to thread pipes quickly and efficiently. It is commonly used in plumbing, construction, and other industries where threading pipes is a frequent task. Electric pipe threading machines are designed to automate the threading process, saving time and effort compared to manual methods.
Here are some key features and steps involved in using an electric pipe threading machine:
1. Power source: Electric pipe threading machines are typically powered by electricity. They can be plugged into a standard electrical outlet or may have their own power source, such as a battery or generator.
2. Threading head: The machine consists of a threading head that holds the cutting dies or dies set. The threading head is adjustable to accommodate different pipe sizes.
3. Die selection: Choose the appropriate cutting dies for the pipe size and thread type you need. The dies are inserted into the threading head and secured in place.
4. Pipe preparation: Before threading, the pipe needs to be properly prepared. This may involve cutting the pipe to the desired length, cleaning any burrs or debris from the pipe ends, and applying cutting oil or lubricant to facilitate the threading process.
5. Pipe clamping: Securely fasten the pipe into the machine's pipe vise or holding mechanism. The pipe should be aligned with the threading head, ensuring it is held firmly in place.
6. Machine setup: Adjust the machine's settings according to the pipe size and thread specifications. This may involve setting the thread depth, thread pitch, and rotation speed. Follow the manufacturer's instructions for proper setup.
7. Threading operation: Power on the machine and engage the threading head with the pipe. The electric motor drives the threading head, which rotates and cuts the threads into the pipe. Apply steady pressure to the pipe to maintain a consistent threading operation.
8. Cutting oil or lubricant: Apply cutting oil or lubricant to the cutting dies and pipe to reduce friction and heat generation during the threading process. This helps extend the life of the cutting tools and improves thread quality.
9. Thread completion: Continue threading the pipe until the desired length of threads is achieved. Monitor the cutting process and adjust the machine's settings as needed.
10. Pipe removal: Once the threading process is complete, disengage the threading head and power off the machine. Carefully remove the threaded pipe from the machine, ensuring it is not damaged during the removal process.
Always follow the specific instructions provided by the manufacturer of the electric pipe threading machine you are using. Proper safety precautions should also be taken, such as wearing protective gloves and eyewear, and following electrical safety guidelines.
Our service for pipe threader
1) We offer 1 year warranty and free spare parts. (Except for wearing parts)
2) We offer voltage and frequency of motor customization service, such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
